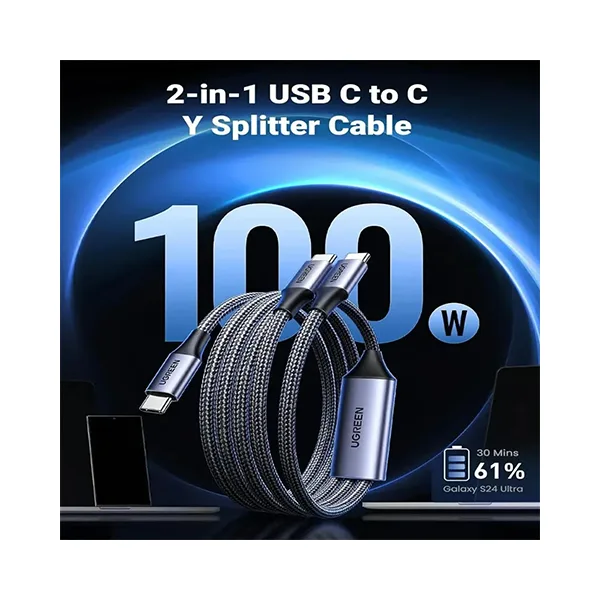

UGREEN US561 (35087) USB-C 2-in-1 PD Fast Charging Cable

UGREEN US561 (35087) USB-C 2-in-1 PD Fast Charging Cable in Bangladesh

Get The UGREEN US561 (35087) USB-C 2-in-1 PD Fast Charging Cable in Bangladesh at gadgetntech.com. Enjoy top quality and unbeatable prices with the best customer service in Bangladesh

Features

• 100W Fast Charging: Supports up to 20V/5A power delivery for rapid charging of laptops, tablets, and smartphones.
• Dual USB-C Design: Stable and efficient charging with a unique double USB-C connector.
• Durable Construction: Features tin-coated copper core, TPE outer coating, and a blend of black and black-gray nylon woven mesh for enhanced durability.
• Advanced Internal Wiring: Includes 30 AWG signal wires and 23 AWG power cords for optimal performance.
• Multi-Layer Shielding: Aluminum foil and tin-coated copper braiding provide robust protection against interference.
• Integrated Safety Chips: Equipped with IP6550, IP2716, IP2738U, and HUSB332A chips along with a 10nF capacitor for regulated and safe charging.
• High Durability Connectors: Features 12-pin gold-plated terminals and nickel-plated stainless steel shells for long-lasting use.
• Extensive Lifecycle: Designed to withstand 10,000 plug-and-play insertions and 3,000 swing tests.
• Wide Compatibility: Supports PD and BC1.2 charging protocols.
• Environmental Compliance: Meets EU RoHS 2.0, REACH, SVHC, POPs, California 65, TSCA, and China RoHS standards.

Specifications

• Brand: Ugreen
• Model: US561 (35087)
• Color: Black
• Product Name: UGREEN Fast Charging Cable
• Cable Length: 1.5 meters
• Core Material: Tin-coated copper
• Outer Coating: TPE
• Braiding: Woven mesh (black and black-gray nylon)
• Shielding: Aluminum foil + tin-coated copper braided
• Gauge (Wire Size):
  • Dual Type-C part:
    • 30 AWG (19/0.06TS + 250D Nylon) signal wire (blue)
    • 23 AWG (55/0.08TS + 250D) power cord (red)
  • Single-wire part:
    • 30 AWG signal cable * 2 (white/green)
    • 30 AWG CC cable * 1 (blue)
    • 23 AWG power cord * 2 (red)
• Wire Cores:
  • Dual Type-C part: 2 cores + 1 ground
  • Single-wire part: 5 cores + 5 ground
• Outer Diameter (OD):
  • Before weaving: 3.7 ± 0.1 mm
  • After weaving: 4.3 ± 0.15 mm
• Connectors:
  • USB-C Male (Black Rubber Core, 94V-0)
  • 12-pin gold-plated terminal (15U)
  • Nickel-plated stainless steel shell
• Chip Models: IP6550, IP2716, IP2738U, HUSB332A
• Capacitor Parameters: 10nF × 3
• Plug-and-play Lifecycle: 10,000 insertions
• Swing Test: 3,000 times ($pm$90$^{circ},30times/min,300gweight)∗∗∗InterfaceVersion:∗∗USB2.0∗∗∗DataTransferRate:∗∗480Mbps∗∗∗ChargingPower:∗∗∗5V/3A∗9V/2A,9V/3A∗15V/2A,15V/3A∗20V/3A,20V/5A(Max100W)∗∗∗ChargingProtocols:∗∗PD,BC1.2∗∗∗FlameRetardantRating:∗∗GB/T5169.23∗∗∗OperatingTemperature:∗∗0 45^{circ}C∗∗∗StorageTemperature:∗∗−15 70^{circ}$C
• Environmental Compliance: EU RoHS 2.0, REACH, SVHC, POPs, California 65, TSCA, China RoHS
