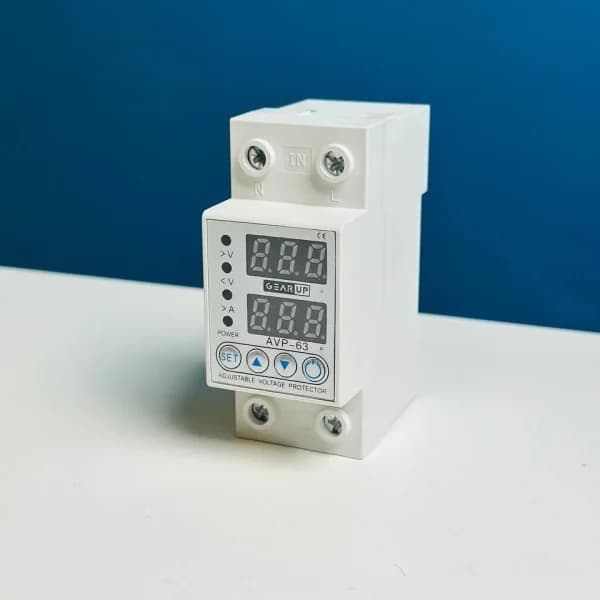

GearUP AVP-63 Automatic Voltage Protector-220V

SKU: AVP-63

Pick up from Store at Elephant Road/ Chittagong/ Comilla

To pick up today

Outside Dhaka delivery

Pathao/ Steadfast courier will deliver to the specified address

2-4 Days

৳ 120

Inside Dhaka delivery

Pathao/ Steadfast courier will deliver to the specified address

1-2 Days

GearUP AVP-63 Automatic Voltage Protector in Bangladesh Get The GearUP AVP-63 Automatic Voltage Protector-220V at GADGETNTECH.COM Enjoy top quality and unbeatable prices with the best customer service in Bangladesh Key Functions Protection Features Over-voltage Protection: Cuts off power i…

Original price was: 1,000.00৳ .Current price is: 850.00৳ .

435 in stock

Description

GearUP AVP-63 Automatic Voltage Protector in Bangladesh

Get The GearUP AVP-63 Automatic Voltage Protector-220V at GADGETNTECH.COM Enjoy top quality and unbeatable prices with the best customer service in Bangladesh

Key Functions

Protection Features
- Over-voltage Protection: Cuts off power if voltage exceeds the set threshold (P-3).
- Under-voltage Protection: Disconnects load if voltage drops below the set limit (P-5).
- Over-current Protection: Trips when current surpasses the configured max (P-9) after a delay (P-10).
- Automatic Recovery: Restores power after fault conditions (adjustable via P-15).
- Fast Power-Down: Emergency cutoff (enabled via P-14).
Monitoring & Display
- Real-time voltage display (AC/DC).
- Real-time current display (AC only; DC mode shows voltage only).
- Indicators for faults (>V, <V, >A) and normal operation (POWER).
Programmable Settings
- Adjustable thresholds for voltage/current, recovery times, and calibration (P-1 to P-17).
- Password protection (P-17) to prevent unauthorized changes.

2. Technical Specifications

Category	Details
Power Supply	AC: 320V / DC: 80–300V
Frequency	50/60Hz (AC only)
Voltage Range	AC: 80–300V (setting), 80–210V (operating) / DC: 130–300V (setting), 80–210V (operating)
Max Current	40A/63A (configurable)
Accuracy	Voltage: <1%
Response Time	Overvoltage: 0.5s (no delay) / Adjustable trip delays (P-7, P-10)
Environmental	-25°C to +50°C, ≤2000m altitude, ≤50% humidity (at 40°C)
Physical	512 × 960mm, 15kg

3. Setup & Operation Guide

A. Initial Configuration

Power Connection:
- Wire terminals (N-L) to AC/DC source within rated limits.
Menu Navigation:
- Use front-panel buttons to adjust parameters (P-1 to P-17).

B. Critical Settings

Parameter	Purpose	Default	Range
P-3/P-5	Over/under-voltage thresholds	300V/80V	AC: 80–300V / DC: 130–300V
P-9	Max current limit	63A	14–63A
P-15	Auto-recovery after fault	ON	ON/OFF
P-17	Password lock	000	000–999

C. Calibration

Voltage: Adjust via P-8 (±10%).
Current: Calibrate with P-12 (±10%).
Frequency (AC only): Fine-tune with P-13 (±2.5%).

D. Safety & Recovery

Manual Reset: Required if auto-recovery (P-15) is disabled.
Event Logging: Overcurrent counts (P-11) track fault history.

4. Usage Notes

DC Mode: Current display disabled; only voltage monitored.
Energy Saving: Enable P-16 to reduce idle power consumption.
Altitude Warning: Performance may degrade above 2000m.

Note: Refer to the device’s manual for detailed wiring diagrams and safety compliance.

Specification

Overview

Brand	GearUP
power-supply	AC: 320V / DC: 80–300V
additional-specifications	Accuracy: Voltage: <1%, Category: Details, Environmental: -25°C to +50°C, ≤2000m altitude, ≤50% humidity (at 40°C), Frequency: 50/60Hz (AC only), Max Current: 40A/63A (configurable), P-15: Auto-recovery after fault, P-17: Password lock, P-3/P-5: Over/under-voltage thresholds, P-9: Max current limit, Physical: 512 × 960mm, 15kg, Response Time: Overvoltage: 0.5s (no delay) / Adjustable trip delays (P-7, P-10), Voltage Range: AC: 80–300V (setting), 80–210V (operating) / DC: 130–300V (setting), 80–210V (operating)
